MAINTENANCE AND REPAIR
With Ship Maintenance and Repair services, we serve 24/7 all over Turkey and every country in the world. YUCEL MASTER Tuzla - Istanbul Türkiye
Care

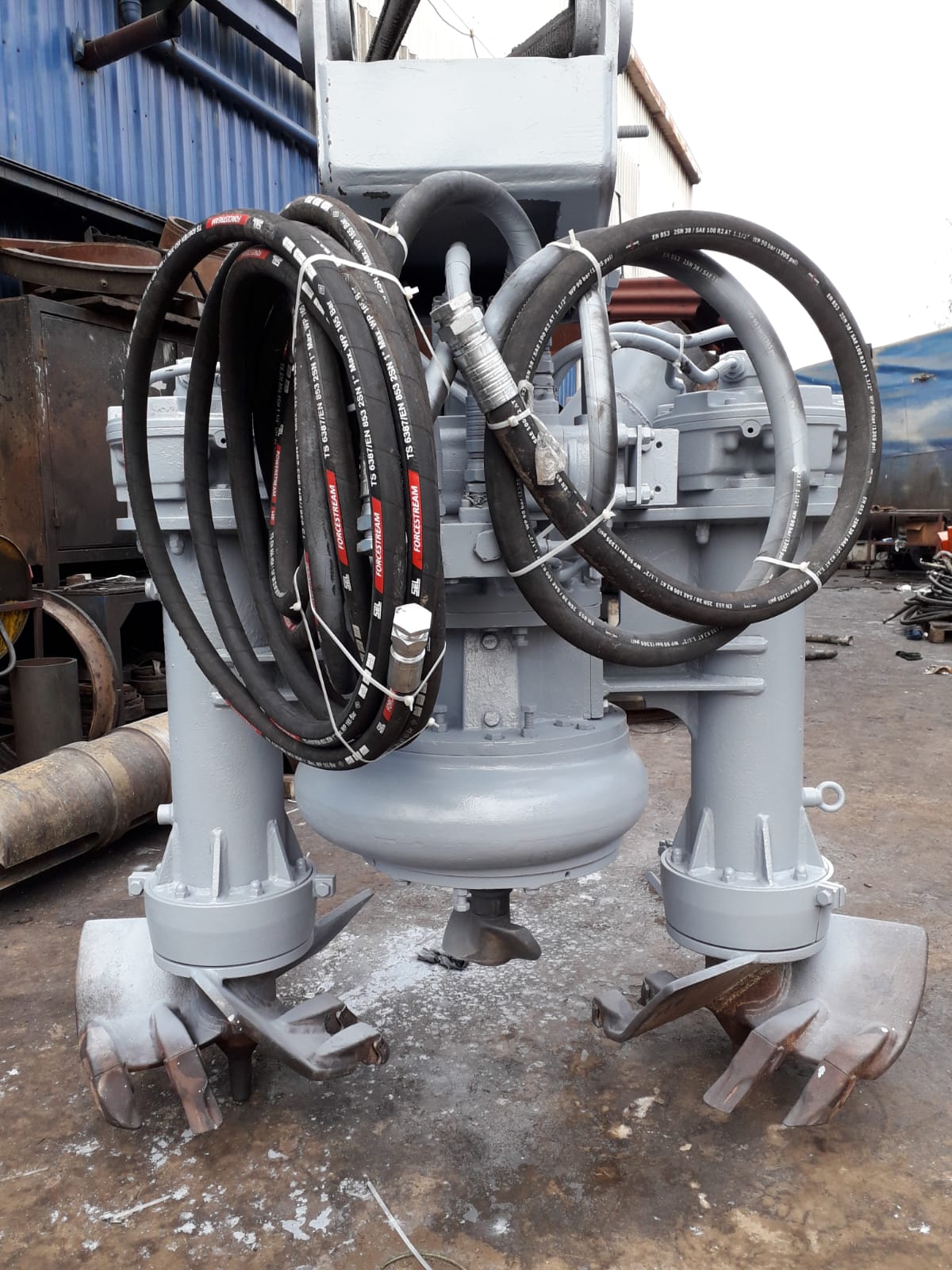

Pump Maintenance
The pump is taken to our workshop.
All parts are dismantled.
All parts are cleaned.
Shafts are checked for runout.
Bearings, seals, o-rings are replaced with new ones.
Hydraulic equipments (Hoses, Unions, Hydromotor) are checked and replaced if necessary.
After these processes, the pump is collected and tested.

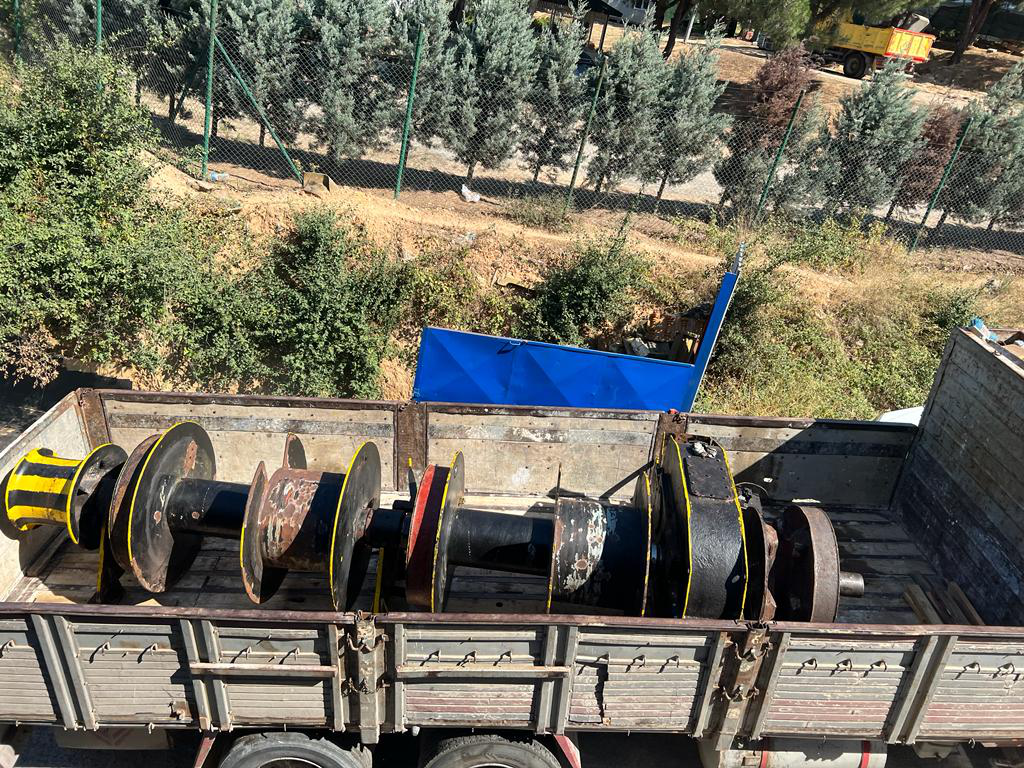

Windlass Maintenance
The windlass that comes to our workshop is dismantled.
The capstan shaft is lifted and the dimensions of the runout and the bearings are checked.
If there is a problem in the bearing areas, it is welded and machined.
Bronze beds are checked, if worn, a new one is made and hammered into place.
The gearbox is checked and the bearing seals are changed if necessary.
A maintenance report is prepared and delivered.

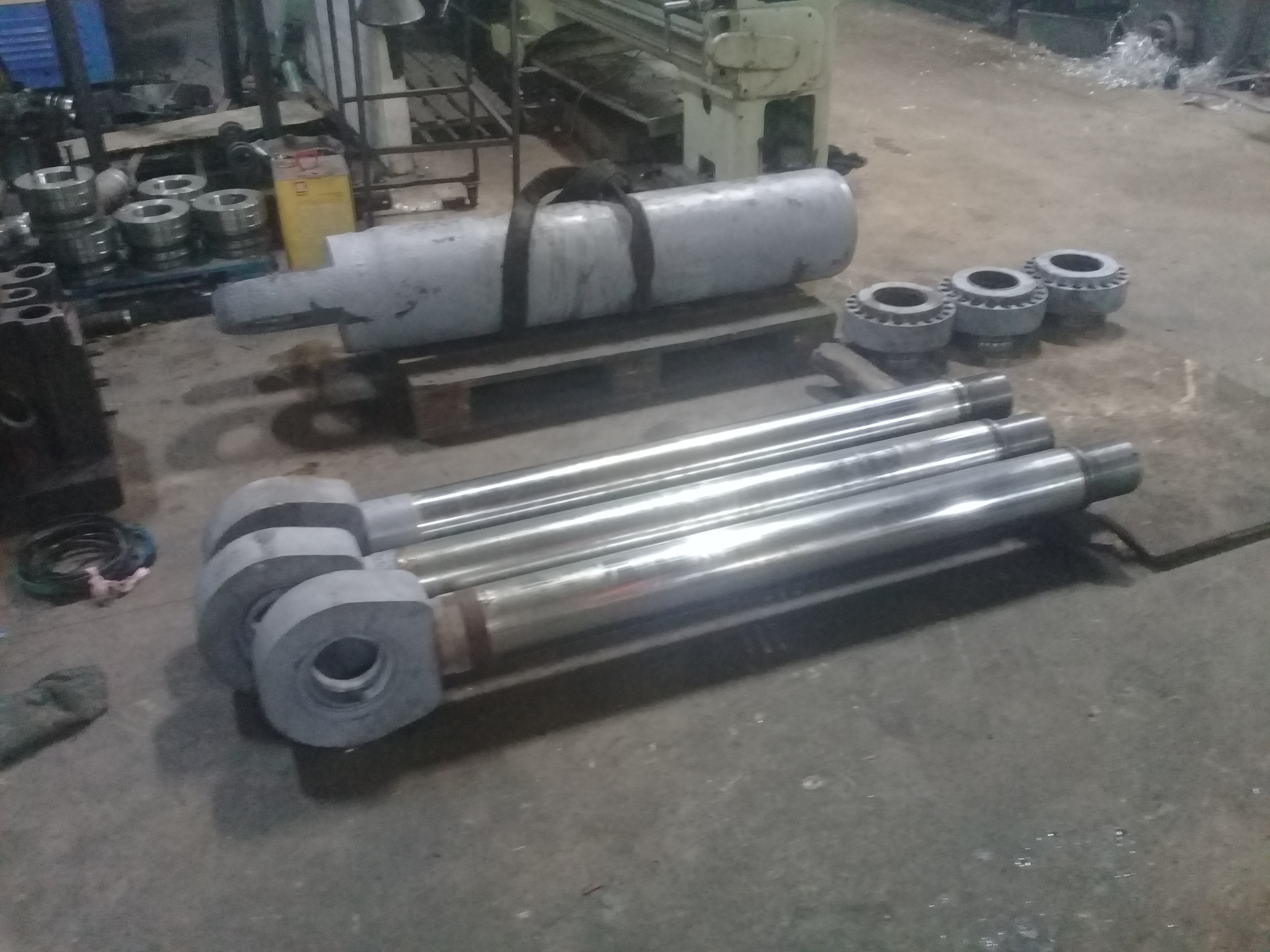

Hydraulic Piston Maintenance
The piston coming to our workshops is disassembled and the pipe and rod are separated from each other.
The surface of the rod is checked and, if necessary, filled with chrome welding and machined on a lathe.
If there are scratches in the pipe, honing is done.
Piston is collected together with the newly purchased seals.

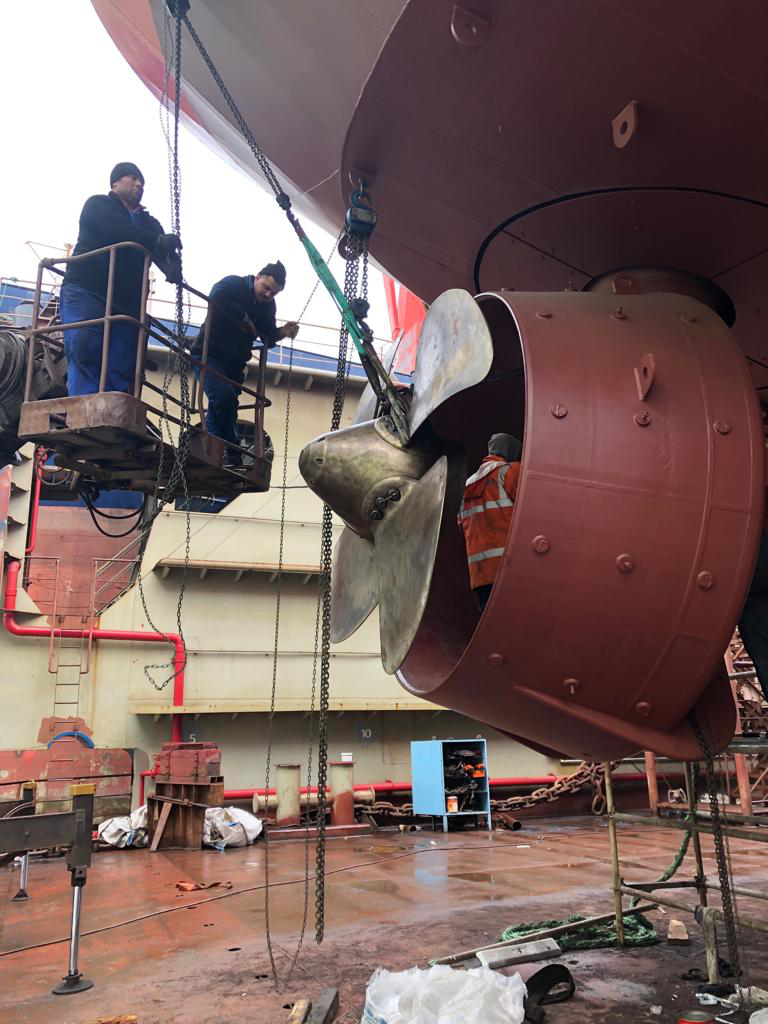

Propulsion Maneuvering System and Bowthruster
The propulsion maneuvering system and head thrusters coming to our workshop are disassembled by making the necessary markings.
After cleaning, the dimensions of all bearings and seals are checked.
All shafts are checked for runout.
Gear and bearing clamps are checked and adjusted according to the catalog value during the assembly phase.
Shafts are magnetically tested.
All operations are supported by photographs and delivered in the form of a maintenance report.
